整體超微晶粒硬質合金電路板鉆頭

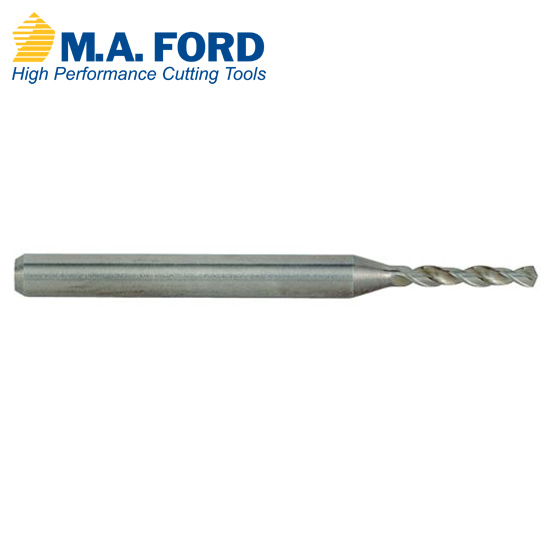

M.A.FORD 整體超微晶粒硬質合金電路板鉆頭
130°鉆尖角·錐度鉆心厚·1/8"柄·全長1-1/2"

應用：
·用于鉆削環氧,中性樹脂,玻璃纖維光纖電路板
·用于在高鉆削溫度下,鉆身必須承受持續摩擦的情況下

特點：
·整體硬質合金可提供額外的強度

*庫存有限
#可能是165°鉆尖角

貨號	型號	尺寸	刃長	全長	直徑	重量	刃數	價格(1件起訂)			購買
								1	1	1
20-520-178*	30201600	#78	.187"	1-1/2"		0.06 lbs.	2刃	87.51	87.51	87.51
20-520-177*	30201800	#77	.187"	1-1/2"		0.06 lbs.	2刃	87.51	87.51	87.51
20-520-176	30202000	#76	.187"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-175	30202100	#75	.187"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-174*	30202250	#74	.187"	1-1/2"		0.06 lbs.	2刃	63.65	63.65	63.65
20-520-173	30202400	#73	.187"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-172	30202500	#72	.187"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-171*	30202600	#71	.187"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-170*	30202800	#70	.250"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-169	30202920	#69	.250"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-168*	30203100	#68	.250"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-167	30203200	#67	.250"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-166	30203300	#66	.250"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-165	30203500	#65	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-164	30203600	#64	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-163	30203700	#63	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-162*	30203800	#62	.400"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-161*	30203900	#61	.400"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-160	30204000	#60	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-158*	30204200	#58	.400"	1-1/2"		0.06 lbs.	2刃	63.65	63.65	63.65
20-520-157*	30204300	#57	.400"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-156	30204650	#56	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-155	30205200	#55	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-154	30205500	#54	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-153	30205950	#53	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-152	30206350	#52	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-151	30206700	#51	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-150	30207000	#50	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-149	30207300	#49	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-148	30207600	#48	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-147	30207850	#47	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-146	30208100	#46	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-145	30208200	#45	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-144	30208600	#44	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-143	30208900	#43	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-142	30209350	#42	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-141	30209600	#41	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-139	30209950	#39	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-138	30210150	#38	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-137	30210400	#37	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-136*	30210650	#36	.400"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-135*	30211000	#35	.400"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-134*	30211100	#34	.400"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-133*	30211300	#33	.400"	1-1/2"		0.0088 lbs.	2刃	55.71	55.71	55.71
20-520-132	30211600	#32	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-130#	30612850	#30	.490"	1-1/2"		0.06 lbs.	2刃	129.36	129.36	129.36
20-520-129#	30613600	#29	.490"	1-1/2"		0.06 lbs.	2刃	129.36	129.36	129.36
20-520-127*#	30614400	#27	.490"	1-1/2"		0.0088 lbs.	2刃	135.28	135.28	135.28
20-520-124*#	30615200	#24	.490"	1-1/2"		0.0088 lbs.	2刃	140.57	140.57	140.57
20-520-123*#	30615400	#23	.490"	1-1/2"		0.0088 lbs.	2刃	135.28	135.28	135.28
20-520-121*#	30615900	#21	.490"	1-1/2"		0.0088 lbs.	2刃	148.55	148.55	148.55
20-520-120*#	30616100	#20	.490"	1-1/2"		0.0088 lbs.	2刃	148.55	148.55	148.55
20-520-117*#	30617300	#17	.490"	1-1/2"		0.011 lbs.	2刃	148.89	148.89	148.89
20-520-116*#	30617700	#16	.490"	1-1/2"		0.011 lbs.	2刃	166.02	166.02	166.02
20-520-114*#	30618200	#14	.490"	1-1/2"		0.011 lbs.	2刃	166.02	166.02	166.02
20-520-112*#	30618900	#12	.490"	1-1/2"		0.011 lbs.	2刃	166.02	166.02	166.02
20-520-111*#	30619100	#11	.490"	1-1/2"		0.011 lbs.	2刃	189.78	189.78	189.78
20-520-110*#	30619350	#10	.490"	1-1/2"		0.011 lbs.	2刃	189.78	189.78	189.78
20-520-107*#	30620100	#7	.490"	1-1/2"		0.011 lbs.	2刃	189.78	189.78	189.78
20-520-106*#	30620400	#6	.490"	1-1/2"		0.011 lbs.	2刃	189.78	189.78	189.78
20-520-105*#	30620550	#5	.490"	1-1/2"		0.011 lbs.	2刃	201.81	201.81	201.81
20-520-104*#	30620900	#4	.490"	1-1/2"		0.011 lbs.	2刃	201.81	201.81	201.81
20-520-103*#	30621300	#3	.490"	1-1/2"		0.011 lbs.	2刃	201.81	201.81	201.81
20-520-102*#	30622100	#2	.490"	1-1/2"		0.011 lbs.	2刃	224.22	224.22	224.22
20-520-101*#	30622800	#1	.490"	1-1/2"		0.011 lbs.	2刃	224.22	224.22	224.22
20-520-016*#	30625000	1/4"	.490"	1-1/2"		0.011 lbs.	2刃	250.77	250.77	250.77
20-520-011*#	30617190	11/64"	.490"	1-1/2"		0.0088 lbs.	2刃	148.55	148.55	148.55
20-520-010*#	30615620	5/32"	.490"	1-1/2"		0.0088 lbs.	2刃	135.28	135.28	135.28
20-520-009*#	30614060	9/64"	.490"	1-1/2"		0.0088 lbs.	2刃	116.80	116.80	116.80
20-520-008	30212500	1/8"	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-007	30210940	7/64"	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-006	30209380	3/32"	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-005	30207810	5/64"	.400"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
20-520-004	30206250	1/16"	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-003	30204690	3/64"	.400"	1-1/2"		0.06 lbs.	2刃	65.29	65.29	65.29
20-520-002	30203120	1/32"	.250"	1-1/2"		0.0088 lbs.	2刃	57.35	57.35	57.35
