您當前的位置：首頁 >> 高速鋼、鈷高速鋼刀具 >> 鉆頭 >> 短刃鉆 >> NACHI >> NACHI 短刃機用直柄麻花鉆

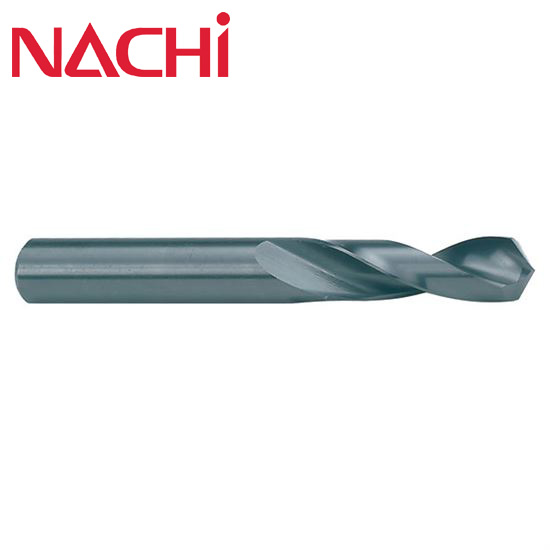

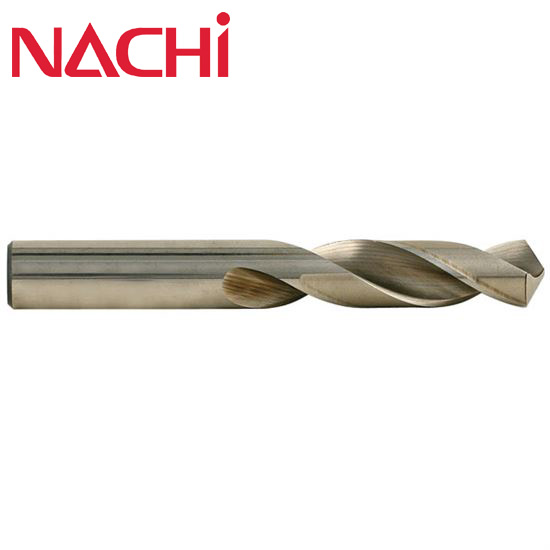

NACHI 短刃機用直柄麻花鉆

每包數量：
3/64"至5/16"：10
21/64"至1/2"：5
1/2"以上：1
#1至#60：10

NACHI 短刃機用直柄麻花鉆
右旋·高速鋼/鈷高速鋼

應用：
·用于要求短刃鉆的螺絲機床加工
·短鉆提供在加工鉆削大范圍材料及合金上增加剛性
·最適宜鉆削鋼，鑄鋼，鑄鐵或其他合金含鐵材料，
也可以用于大范圍不含鐵及非合金性的材料上
·可以做為手用鉆頭使用或用于便攜式及固定機器上
·用于達到最高的性能和最長的刀具壽命，要求使用適當?shù)那邢饕夯蚶鋮s液

特點：
·右旋
·標準的刃設計
·標準螺旋槽
·直柄對應鉆頭直徑成比例
·短刃長與鉆頭直徑成比例

技術參數：
·高速鋼材質
·圓柱形棒料磨制
·118°或135°鉆尖角和標準鉆芯厚度
·發黑蒸汽處理

貨號	型號	尺寸	直徑	刃長	全長	刃數	重量	價格(1件起訂)			購買
								1	1	1
01-074-452		#52		11/16"	1-11/16"	2	0.005 kg	19.13	19.13	19.13
01-074-451		#51		11/16"	1-11/16"	2	0.005 kg	19.13	19.13	19.13
01-074-450		#50		11/16"	1-11/16"	2	0.005 kg	19.13	19.13	19.13
01-074-449		#49		11/16"	1-11/16"	2	0.005 kg	19.13	19.13	19.13
01-074-448		#48		11/16"	1-11/16"	2	0.005 kg	19.13	19.13	19.13
01-074-447		#47		11/16"	1-3/4"	2	0.005 kg	19.13	19.13	19.13
01-074-446		#46		3/4"	1-3/4"	2	0.005 kg	19.13	19.13	19.13
01-074-445		#45		3/4"	1-3/4"	2	0.005 kg	19.13	19.13	19.13
01-074-444		#44		3/4"	1-3/4"	2	0.005 kg	19.13	19.13	19.13
01-074-443		#43		3/4"	1-3/4"	2	0.005 kg	19.13	19.13	19.13
01-074-442		#42		3/4"	1-3/4"	2	0.005 kg	19.13	19.13	19.13
01-074-441		#41		13/16"	1-13/16"	2	0.005 kg	19.64	19.64	19.64
01-074-440		#40		13/16"	1-13/16"	2	0.005 kg	19.93	19.93	19.93
01-074-439		#39		13/16"	1-13/16"	2	0.005 kg	19.93	19.93	19.93
01-074-438		#38		13/16"	1-13/16"	2	0.005 kg	19.93	19.93	19.93
01-074-437		#37		13/16"	1-13/16"	2	0.005 kg	21.64	21.64	21.64
01-074-436		#36		13/16"	1-13/16"	2	0.005 kg	21.64	21.64	21.64
01-074-435		#35		7/8"	1-7/8"	2	0.005 kg	21.64	21.64	21.64
01-074-434		#34		7/8"	1-7/8"	2	0.005 kg	21.64	21.64	21.64
01-074-433		#33		7/8"	1-7/8"	2	0.005 kg	21.64	21.64	21.64
01-074-432		#32		7/8"	1-7/8"	2	0.005 kg	22.39	22.39	22.39
01-074-431		#31		7/8"	1-7/8"	2	0.005 kg	22.39	22.39	22.39
01-074-430		#30		15/16"	1-15/16"	2	0.005 kg	22.39	22.39	22.39
01-074-429		#29		15/16"	1-15/16"	2	0.005 kg	23.76	23.76	23.76
01-074-428		#28		15/16"	1-15/16"	2	0.005 kg	23.76	23.76	23.76
01-074-427		#27		1"	2-1/16"	2	0.005 kg	25.83	25.83	25.83
01-074-426		#26		1"	2-1/16"	2	0.005 kg	25.83	25.83	25.83
01-074-425		#25		1"	2-1/16"	2	0.005 kg	25.83	25.83	25.83
01-074-424		#24		1"	2-1/16"	2	0.005 kg	27.60	27.60	27.60
01-074-423		#23		1"	2-1/16"	2	0.005 kg	27.60	27.60	27.60
01-074-422		#22		1-1/16"	2-1/8"	2	0.005 kg	27.60	27.60	27.60
01-074-421		#21		1-1/16"	2-1/8"	2	0.005 kg	27.60	27.60	27.60
01-074-420		#20		1-1/16"	2-1/8"	2	0.005 kg	27.60	27.60	27.60
01-074-419		#19		1-1/16"	2-1/8"	2	0.005 kg	27.60	27.60	27.60
01-074-418		#18		1-1/16"	2-1/8"	2	0.005 kg	28.80	28.80	28.80
01-074-417		#17		1-1/8"	2-3/16"	2	0.005 kg	33.61	33.61	33.61
01-074-416		#16		1-1/8"	2-3/16"	2	0.005 kg	34.82	34.82	34.82
01-074-415		#15		1-1/8"	2-3/16"	2	0.005 kg	35.22	35.22	35.22
01-074-414		#14		1-1/8"	2-3/16"	2	0.005 kg	35.22	35.22	35.22
01-074-413		#13		1-1/8"	2-3/16"	2	0.005 kg	35.22	35.22	35.22
01-074-412		#12		1-3/16"	2-1/4"	2	0.009 kg	37.28	37.28	37.28
01-074-411		#11		1-3/16"	2-1/4"	2	0.009 kg	37.28	37.28	37.28
01-074-410		#10		1-3/16"	2-1/4"	2	0.009 kg	37.85	37.85	37.85
01-074-409		#9		1-3/16"	2-1/4"	2	0.009 kg	37.85	37.85	37.85
01-074-408		#8		1-3/16"	2-1/4"	2	0.009 kg	37.85	37.85	37.85
01-074-407		#7		1-3/16"	2-1/4"	2	0.009 kg	38.03	38.03	38.03
01-074-406		#6		1-1/4"	2-3/8"	2	0.009 kg	47.65	47.65	47.65
01-074-405		#5		1-1/4"	2-3/8"	2	0.009 kg	47.65	47.65	47.65
01-074-404		#4		1-1/4"	2-3/8"	2	0.009 kg	47.65	47.65	47.65
01-074-403		#3		1-1/4"	2-3/8"	2	0.009 kg	47.65	47.65	47.65
01-074-402		#2		1-5/16"	2-7/16"	2	0.009 kg	53.09	53.09	53.09
01-074-401		#1		1-5/16"	2-7/16"	2	0.009 kg	53.09	53.09	53.09
01-073-265		1-1/16"			6"	2	0.907 kg	1080.15	1080.15	1080.15
01-073-264		1"			6"	2	0.907 kg	926.45	926.45	926.45
01-073-260		15/16"			5-3/4"	2	0.68 kg	778.40	778.40	778.40
01-073-256		7/8"			5-3/8"	2	0.68 kg	707.74	707.74	707.74
01-073-255		55/64"			5-3/8"	2	0.454 kg	633.27	633.27	633.27
01-073-252		13/16"			5-1/4"	2	0.454 kg	591.24	591.24	591.24
01-073-249		49/64"			5-1/8"	2	0.454 kg	590.49	590.49	590.49
01-073-248		3/4"			5"	2	0.454 kg	552.93	552.93	552.93
01-073-247		47/64"			5"	2	0.408 kg	543.84	543.84	543.84
01-073-246		23/32"			4-3/4"	2	0.408 kg	516.98	516.98	516.98
01-073-245		45/64"			4-3/4"	2	0.363 kg	501.48	501.48	501.48
01-073-244		11/16"			4-1/2"	2	0.363 kg	472.45	472.45	472.45
01-073-243		43/64"			4-1/2"	2	0.318 kg	422.48	422.48	422.48
01-073-242		21/32"			4-1/2"	2	0.318 kg	456.95	456.95	456.95
01-073-241		41/64"			4-1/2"	2	0.318 kg	422.48	422.48	422.48
01-073-240		5/8"			4-1/4"	2	0.318 kg	382.62	382.62	382.62
01-073-239		39/64"			4-1/4"	2	0.272 kg	377.94	377.94	377.94
01-073-238		19/32"			4-1/8"	2	0.272 kg	362.94	362.94	362.94
01-073-237		37/64"			4-1/8"	2	0.272 kg	362.94	362.94	362.94
01-073-236		9/16"			4"	2	0.272 kg	330.59	330.59	330.59
01-073-235		35/64"			4"	2	0.227 kg	315.09	315.09	315.09
01-073-234		17/32"			3-7/8"	2	0.227 kg	304.38	304.38	304.38
01-073-233		33/64"			3-7/8"	2	0.227 kg	293.61	293.61	293.61
01-073-232		1/2"			3-3/4"	2	0.227 kg	179.25	179.25	179.25
01-073-231		31/64"			3-11/16"	2	0.091 kg	123.99	123.99	123.99
01-073-230		15/32"			3-5/8"	2	0.091 kg	121.30	121.30	121.30
01-073-229		29/64"			3-9/16"	2	0.068 kg	108.00	108.00	108.00
01-073-228		7/16"			3-7/16"	2	0.068 kg	95.00	95.00	95.00
01-073-227		27/64"			3-3/8"	2	0.068 kg	93.22	93.22	93.22
01-073-226		13/32"			3-5/16"	2	0.068 kg	87.73	87.73	87.73
01-073-225		25/64"			3-1/4"	2	0.045 kg	76.54	76.54	76.54
01-073-224		3/8"			3-1/8"	2	0.045 kg	69.55	69.55	69.55
01-073-223		23/64"			3-1/16"	2	0.045 kg	67.15	67.15	67.15
01-073-222		11/32"			3"	2	0.045 kg	60.16	60.16	60.16
01-073-221		21/64"			2-15/16"	2	0.045 kg	55.18	55.18	55.18
01-073-220		5/16"			2-13/16"	2	0.023 kg	44.05	44.05	44.05
01-073-219		19/64"			2-3/4"	2	0.023 kg	40.96	40.96	40.96
01-073-218		9/32"			2-11/16"	2	0.023 kg	38.90	38.90	38.90
01-073-217		17/64"			2-5/8"	2	0.023 kg	36.55	36.55	36.55
01-073-216		1/4"			2-1/2"	2	0.023 kg	32.25	32.25	32.25
01-073-215		15/64"			2-7/16"	2	0.023 kg	30.88	30.88	30.88
01-073-214		7/32"			2-3/8"	2	0.014 kg	27.78	27.78	27.78
01-073-213		13/64"			2-1/4"	2	0.014 kg	23.71	23.71	23.71
01-073-212		3/16"			2-3/16"	2	0.009 kg	21.19	21.19	21.19
01-073-211		11/64"			2-1/8"	2	0.009 kg	20.10	20.10	20.10
01-073-210		5/32"			2-1/16"	2	0.009 kg	19.01	19.01	19.01
01-073-209		9/64"			1-15/16"	2	0.009 kg	17.30	17.30	17.30
01-073-208		1/8"			1-7/8"	2	0.005 kg	15.57	15.57	15.57
01-073-207		7/64"			1-13/16"	2	0.005 kg	15.57	15.57	15.57
01-073-206		3/32"			1-3/4"	2	0.005 kg	15.57	15.57	15.57
01-073-205		5/64"			1-11/16"	2	0.005 kg	15.57	15.57	15.57
01-073-204		1/16"			1-5/8"	2	0.005 kg	15.57	15.57	15.57
01-073-203		3/64"			1-3/8"	2	0.005 kg	16.09	16.09	16.09
01-073-132		1/2"			3-3/4"	2	0.227 kg	227.13	227.13	227.13
01-073-131		31/64"			3-11/16"	2	0.091 kg	202.62	202.62	202.62
01-073-130		15/32"			3-5/8"	2	0.091 kg	190.25	190.25	190.25
01-073-129		29/64"			3-9/16"	2	0.068 kg	178.49	178.49	178.49
01-073-128		7/16"			3-7/16"	2	0.068 kg	152.66	152.66	152.66
01-073-127		27/64"			3-3/8"	2	0.068 kg	148.77	148.77	148.77
01-073-126		13/32"			3-5/16"	2	0.068 kg	137.32	137.32	137.32
01-073-125		25/64"			3-1/4"	2	0.045 kg	125.79	125.79	125.79
01-073-124		3/8"			3-1/8"	2	0.045 kg	111.36	111.36	111.36
01-073-123		23/64"			3-1/16"	2	0.045 kg	113.25	113.25	113.25
01-073-122		11/32"			3"	2	0.045 kg	99.10	99.10	99.10
01-073-121		21/64"			2-15/16"	2	0.023 kg	92.69	92.69	92.69
01-073-120		5/16"			2-13/16"	2	0.023 kg	77.44	77.44	77.44
01-073-119		19/64"			2-3/4"	2	0.023 kg	72.63	72.63	72.63
01-073-118		9/32"			2-11/16"	2	0.023 kg	63.75	63.75	63.75
01-073-117		17/64"			2-5/8"	2	0.023 kg	59.34	59.34	59.34
01-073-116		1/4"			2-1/2"	2	0.023 kg	52.70	52.70	52.70
01-073-115		15/64"			2-7/16"	2	0.023 kg	51.21	51.21	51.21
01-073-114		7/32"			2-3/8"	2	0.014 kg	45.07	45.07	45.07
01-073-113		13/64"			2-1/4"	2	0.014 kg	41.35	41.35	41.35
01-073-112		3/16"			2-3/16"	2	0.009 kg	35.16	35.16	35.16
01-073-111		11/64"			2-1/8"	2	0.009 kg	30.35	30.35	30.35
01-073-110		5/32"			2-1/16"	2	0.005 kg	25.83	25.83	25.83
01-073-109		9/64"			1-15/16"	2	0.005 kg	23.76	23.76	23.76
01-073-108		1/8"			1-7/8"	2	0.005 kg	25.71	25.71	25.71
01-073-107		7/64"			1-13/16"	2	0.005 kg	20.73	20.73	20.73
01-073-106		3/32"			1-3/4"	2	0.005 kg	18.38	18.38	18.38
01-073-105		5/64"			1-11/16"	2	0.005 kg	18.38	18.38	18.38
01-073-104		1/16"			1-5/8"	2	0.005 kg	19.13	19.13	19.13
01-073-103		3/64"			1-3/8"	2	0.005 kg	21.47	21.47	21.47
